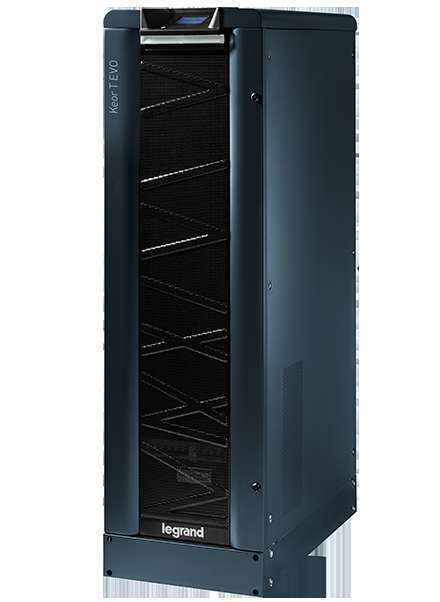

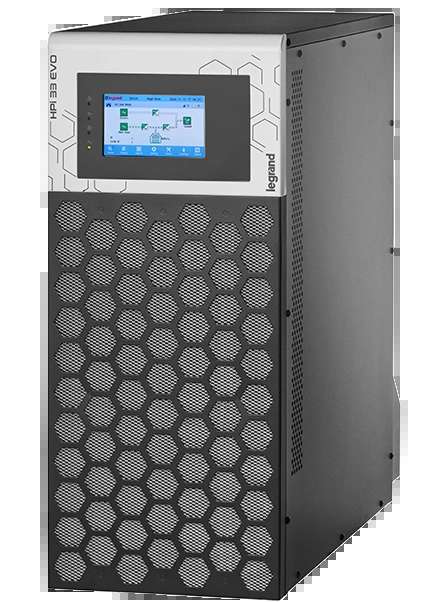

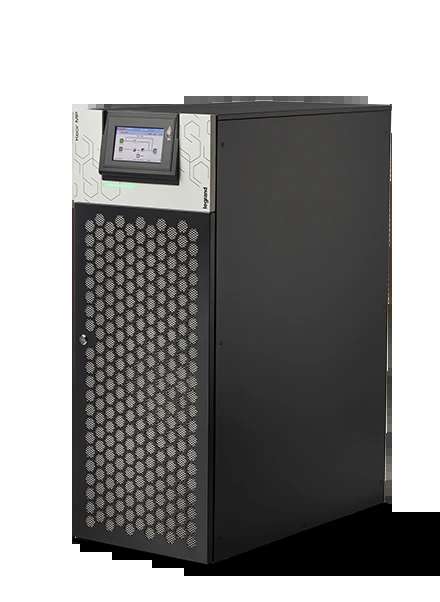

THREE PHASE INPUT – THREE PHASE OUTPUT ONLINE UPS
Description
The DELTRON Three Phase Online UPS is built for large-scale, mission-critical applications where uninterrupted power and maximum reliability are essential. With capacity ranging from 10 kVA to 125 kVA, this UPS system ensures continuous, clean, and stable three-phase power for industries, data centers, hospitals, telecom networks, and commercial complexes.
Developed with DSP-controlled double conversion technology and IGBT rectifier/inverter modules, DELTRON’s 3-Phase UPS guarantees pure sine wave output, high efficiency, and superior fault protection—even under the harshest grid conditions.
- True Online Double Conversion Technology – Ensures the highest quality and reliability of power.
- Three Phase Input / Three Phase Output – Designed for high-load, industrial-grade applications.
- Advanced DSP-Based Control – Provides real-time monitoring, precision, and fast response.
- IGBT Rectifier & Inverter Technology – High efficiency, reduced harmonics, and compact design.
- Scalable Design – Available in configurations from 10 kVA up to 125 kVA.
- Wide Input Voltage & Frequency Range – Operates reliably with unstable grid power.
- Pure Sine Wave Output – Protects sensitive loads from fluctuations and electrical noise.
- Comprehensive LCD Display – Shows input/output parameters, battery status, load %, alarms, and event logs.
- Event & Error Memory – Logs up to 100 events/faults for diagnostics and maintenance.
- Intelligent Battery Management – Adjustable charging voltage and current with temperature compensation for extended battery life.
- Robust Protection System – Overload, surge, short-circuit, neutral fault, and battery protections.
- Data Centers & Server Rooms
- Hospitals & Medical Equipment
- Industrial Control & Automation
- Telecommunication Networks
- Banks & Financial Institutions
- Government & Defense Installations
- Commercial Buildings & IT Infrastructure
- Capacity: 10 kVA, 20 kVA, 30 kVA, 40 kVA, 60 kVA, 80 kVA, 100 kVA, 125 kVA
- Input Voltage: 3 Phase, 415V ± 20%
- Input Frequency: 50 Hz ± 5 Hz
- Output Voltage: 415V ± 1% (3-Phase, 4-Wire)
- Output Frequency: 50 Hz ± 0.5 Hz (synchronized with mains)
- Power Factor: ≥ 0.9
- Efficiency: Up to 94% (AC-AC)
- THD (Total Harmonic Distortion): ≤ 3% (linear load)
- Crest Factor: 3:1
- Battery: External battery bank, scalable as per backup requirements
Wide range: 10 kVA to 125 kVA for large-scale applications
High efficiency & advanced fault protection
Robust design for industrial & commercial use
Designed and manufactured in India with in-house R&D
Backed by expert service & support team
